Txheej txheem cej luam ntawm Tuam Tshoj lub silicon wafer kev lag luam kev lag luam
Cov ntsiab lus yooj yim thiab kev faib tawm
Lub ntsiab lus ntawm silicon wafers
Silicon wafers xa mus rau nyias, tiaj tus, puag ncig silicon matrix khoom, uas yog ib qho tseem ceeb rau kev ua ib tug integrated circuits. Photolithography, ion implantation, thiab lwm txoj hauv kev tuaj yeem ua kev sib xyaw ua ke thiab ntau yam khoom siv semiconductor. Silicon suav txog li 27% ntawm lub ntiaj teb crust. Nws muaj ntau nyob rau hauv reserves thiab pheej yig, yog li nws tau dhau los ua lub ntiaj teb feem ntau siv thiab loj tshaj plaws-ntim semiconductor cov khoom siv yooj yim. Tam sim no, ntau dua 90% ntawm cov khoom siv semiconductor yog ua los ntawm cov khoom siv silicon. Silicon wafers yog cov ntawv zoo li cov khoom ua los ntawm silicon, nrog txoj kab uas hla ntawm 6 ntiv tes, 8 ntiv tes, 12 ntiv tes, thiab lwm yam.
Classification ntawm silicon wafers
Silicon wafers yog ib hom khoom siv semiconductor, dav siv hauv electronics, computers, kev sib txuas lus, tsheb, aerospace thiab lwm yam kev lag luam. Silicon wafers tau muab faib ua semiconductor silicon wafers thiab photovoltaic silicon wafers raws li purity ntawm silicon wafers; lawv tau muab faib ua polished wafers, annealed wafers, epitaxial wafers, thiab SOI wafers raws li tus txheej txheem; lawv tau muab faib ua 12 nti \ 300mm, 8 nti \ 200mm, thiab 6 nti \ 150mm raws li qhov loj me. Ntawm lawv, 200mm thiab 300mm silicon wafers muaj ntau yam kev siv.
Classification ntawm silicon wafers
| Classification Standard | Yam khoom | Taw qhia |
| Kev faib tawm los ntawm silicon wafer purity | Semiconductor silicon wafers Photovoltaic silicon wafers |
1. Semiconductor silicon wafers yog cov ntaub ntawv tseem ceeb rau kev sib xyaw ua ke. Los ntawm photolithography, ion implantation thiab lwm txoj kev, integrated circuits thiab ntau yam semiconductor li yuav ua tau. 2. Photovoltaic silicon wafers yog silicon wafers siv nyob rau hauv photovoltaic teb. Hauv thaj chaw photovoltaic, silicon wafers feem ntau yog siv los ua kom tiav kev hloov pauv ntawm hnub ci zog rau hauv hluav taws xob. |
| Kev faib tawm los ntawm txheej txheem | Polished wafer Annealed wafer Epitaxial wafer SIB wafer |
1. Polishing wafers yog cov khoom siv dav tshaj plaws, feem ntau siv thiab cov khoom siv yooj yim. Lwm cov khoom siv silicon wafer yog tsim los ntawm kev ua haujlwm thib ob raws li polishing wafers. 2. Annealing wafers yog tau los ntawm annealing lub polishing wafers nyob rau hauv ib tug high-kub ib puag ncig uas muaj argon los yog oxygen. 3. Epitaxial wafers siv vapor theem kev loj hlob thev naus laus zis nyob rau saum npoo ntawm polishing wafer kom epitaxially loj hlob ib qho khoom tsim txheej txheej rau ntawm qhov chaw ntawm polishing wafer, kom nws nto yuav smoother dua polishing wafer txiav los ntawm kev txiav, yog li txo qhov chaw. qhov tsis xws luag. 4. S0Kuv wafers yog cov qauv sandwich, uas yog, txheej hauv qab yog polishing wafer, nruab nrab yog txheej oxide faus, thiab cov txheej saum toj kawg nkaus yog txheej txheej txheej polishing wafer, uas tuaj yeem ua tiav cov hluav taws xob rwb thaiv tsev siab. , yog li txo tus kab mob parasitic capacitance thiab to. |
| Kev faib tawm los ntawm qhov loj me | 12 nti \ 300mm 8 nti\200mm 6 nti\150mm |
1. Feem ntau yog siv rau hauv cov khoom lag luam siab, xws li CPU, GPU thiab lwm yam logic chips thiab nco chips, uas yog lub hauv paus loj hauv kev ua lag luam tam sim no, nrog rau kev lag luam feem ntau ntawm 65 ~ 70%. 2. Feem ntau yog siv rau hauv cov khoom siv qis kawg thiab nruab nrab, xws li cov khoom siv hluav taws xob, MCU, hluav taws xob semiconductors, thiab lwm yam., nrog rau kev lag luam feem ntau ntawm 25 ~ 27%. 3. Feem ntau yog siv rau hauv cov khoom siv qis kawg thiab nruab nrab, xws li lub zog semiconductors, nrog rau kev lag luam sib faib ze li ntawm 6 ~ 7%. |
Kev sib piv ntawm silicon wafers nrog txawv purity ntsuas
Cov chaw tseem ceeb ntawm silicon wafers tau muab faib ua semiconductor silicon wafers thiab photovoltaic silicon wafers raws li kev faib tawm purity. Hauv daim teb photovoltaic, ob qho tib si monocrystalline silicon thiab polycrystalline silicon yog siv, thiab qhov yuav tsum tau purity yog li ntawm 99.9999% (4-6N). Lawv tsuas yog siv los ua cov hnub ci hnub ci thiab tau siv dav hauv cov chaw siv hluav taws xob photovoltaic, ru tsev faib hluav taws xob photovoltaic thiab lwm yam. Hauv thaj chaw semiconductor, tsuas yog siv monocrystalline silicon. Raws li nws cov txheej txheem txuas ntxiv mus, nws cov purity yuav tsum ncav cuag 99.999999999% (11N) lossis siab dua. Nws yog siv los ua cov chips thiab dav siv hauv kev sib txuas lus, cov neeg siv khoom siv hluav taws xob, tsheb, kev lag luam thiab lwm yam.

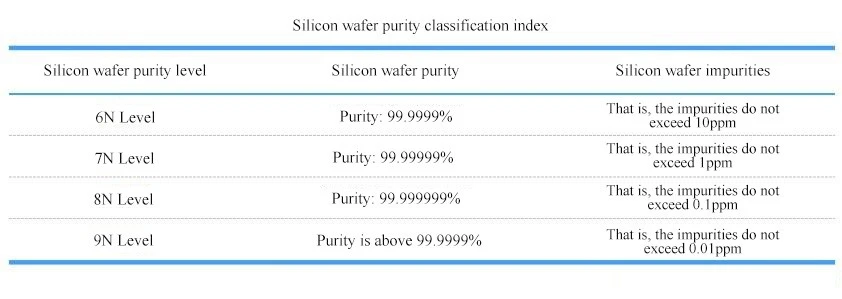

Nyob rau hauv silicon wafer purity faib Performance index, nws yog cais raws li txawv purity theem, thiab ppm (piv txwv li qhov chaw ib lab) feem ntau yog siv los ntsuas nws purity. Silicon wafers yog siv rau crystalline silicon, semiconductor silicon, hluav taws xob silicon, industrial-qib silicon, ntau lawm-qib silicon, dav silicon, thiab lwm yam raws li txawv purities.

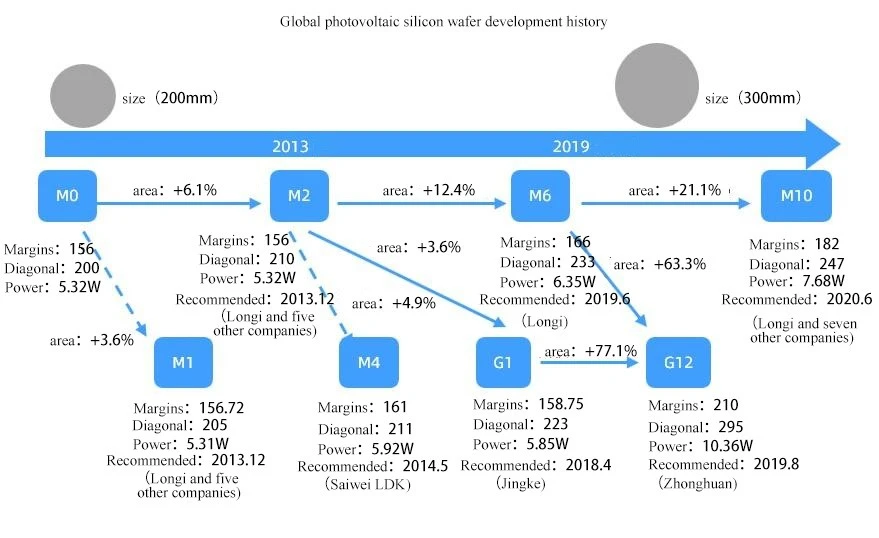

Kev Txhim Kho Keeb Kwm ntawm Ntiaj Teb Silicon Wafer Kev Lag Luam
Silicon wafers tab tom txhim kho mus rau qhov loj dua tag nrho
Kev txhim kho ntawm lub ntiaj teb silicon wafers tuaj yeem taug qab mus rau xyoo 1960s. Nrog rau kev nce qib ntawm kev siv thev naus laus zis tas li, daim ntawv thov ntawm silicon wafers tau txuas ntxiv txuas ntxiv. Photovoltaic silicon wafers thiab semiconductor silicon wafers yog ob qho tib si nyias nyias txiav los ntawm silicon ib leeg siv lead ua ingots, tab sis lawv daim ntawv thov teb txawv. Photovoltaic silicon wafers feem ntau yog siv nyob rau hauv kev tsim cov hnub ci vaj huam sib luag, thaum semiconductor silicon wafers yog siv los tsim kev sib txuas circuits, transistors thiab lwm yam khoom siv hluav taws xob. Hauv thaj chaw semiconductor, silicon wafers yog cov ntaub ntawv tseem ceeb rau kev txhim kho kev lag luam semiconductor. Hauv kev txhim kho cov txheej txheem ntawm silicon wafers, nrog kev txhim kho txuas ntxiv ntawm qib thev naus laus zis, qhov loj dua qhov loj ntawm silicon wafers, ntau dua cov khoom siv thiab kev ua haujlwm ntawm semiconductors. Tag nrho cov qauv ntawm silicon wafer kev lag luam yog mus rau qhov ntau thiab tsawg, los ntawm thawj 1-inch thiab 2-inch mus rau lub lag luam tam sim no mainstream 6-inch, 8-inch thiab {{ 5}}inch. Hauv thaj chaw photovoltaic, nrog rau kev txhawb nqa lub zog huv, kev lag luam photovoltaic fais fab kev lag luam tau qhia txog kev txhim kho muaj zog. Ntau lub tuam txhab photovoltaic tau nthuav lawv lub peev xwm ntau lawm. Lub ntiaj teb no photovoltaic fais fab tsim tsim muaj peev xwm tau qhia txog kev loj hlob sai, uas tseem tau tsav txoj kev loj hlob ntawm lub ntiaj teb photovoltaic silicon wafers. Qhov loj ntawm silicon wafers tau nce nrog daim ntawv thov.

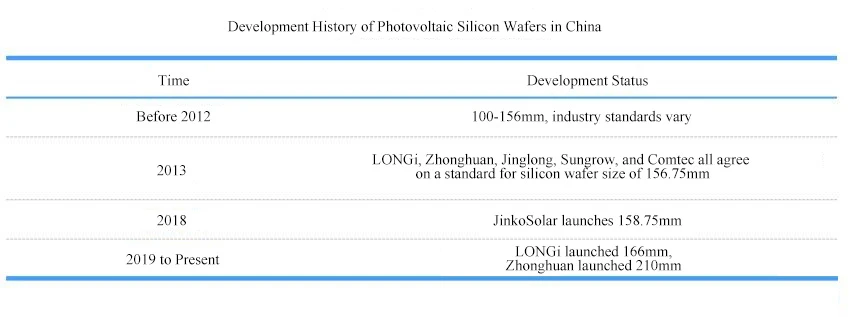

Kev txhim kho keeb kwm ntawm Tuam Tshoj txoj kev lag luam Silicon Wafer
Txhim kho kev tshawb fawb ywj pheej thiab kev txhim kho, tsim kho tshiab hauv zos silicon wafer kev loj hlob
Txoj kev loj hlob ntawm Suav silicon wafers pib cia siab rau kev xa khoom, thiab kev lag luam hauv tsev silicon wafer tsim maj mam. Nrog kev yuav khoom ntawm cov khoom siv txawv teb chaws silicon wafer ntau lawm thiab kev ntxiv dag zog ntawm silicon wafer kev tshawb fawb thiab kev loj hlob, ib tug xov tooj ntawm silicon wafer ntau lawm tuam txhab uas muag tau tshwm sim nyob rau hauv Suav teb, thiab kev ceev ntawm localization tau nrawm. Thaum kuv lub teb chaws txoj kev lag luam silicon wafer nkag mus rau lub sijhawm ntawm kev loj hlob sai, tsoomfwv Suav tau qhia txog cov cai tswjfwm los txhawb kev txhim kho ntawm kev lag luam silicon wafer. Txoj kev loj hlob ntawm photovoltaic silicon wafers nyob rau hauv kuv lub teb chaws pib nyob rau hauv 2012. 100-156mm yog nrov nyob rau hauv kev lag luam, thiab cov qauv txawv; nyob rau hauv 2013, lub unified silicon wafer loj txheem ntawm tsib domestic manufacturers yog 156.75mm; Txij xyoo 2019 mus txog rau tam sim no, cov tuam txhab ua lag luam hauv teb chaws tau tshaj tawm cov khoom siv hluav taws xob photovoltaic silicon wafers ntawm ntau qhov sib txawv los hloov kho rau txoj kev loj hlob ntawm kev lag luam hauv qab. Txoj kev loj hlob ntawm Tuam Tshoj lub semiconductor silicon wafers ua pace nrog thoob ntiaj teb pace. Cov khoom specifications ntawm semiconductor silicon wafers ntawm domestic tuam txhab uas muag tau tsim los ntawm 50mm mus rau 300mm, thiab cov zoo thiab kev sib tw ntawm silicon wafer khoom twb tsis tu ncua txhim kho.
Taw qhia rau Tuam Tshoj tus silicon wafer kev lag luam kev faib tawm
(一) Semiconductor silicon wafers: tsis muaj thiab daim ntawv thov scenarios
Semiconductor silicon wafers xa mus rau nyias slices txiav los ntawm silicon ib leeg siv lead ua ingots, uas yog lug siv substrate ntaub ntawv nyob rau hauv lub semiconductor kev lag luam. Tam sim no, ntau dua 90% ntawm cov chips sib xyaw ua ke siv silicon ua cov khoom siv substrate. Raws li kev faib tawm ntawm silicon wafer loj, cov specifications feem ntau txawv ntawm txoj kab uas hla, feem ntau yog 6 ntiv tes, 8 ntiv tes, 12 ntiv tes, thiab lwm yam 12-inch silicon wafers nyob rau hauv 2000, semiconductor silicon wafers tau txuas ntxiv txhim kho nyob rau hauv cov kev taw qhia ntawm qhov loj me, thiab loj-loj silicon wafers tau dhau los ua lub ntsiab ntawm kev lag luam.
Raws li kev faib tawm ntawm silicon wafer daim ntawv thov scenarios, silicon wafers tuaj yeem muab faib ua qhov zoo wafers thiab kuaj wafers. Cov wafers zoo yog siv ncaj qha rau hauv kev tsim khoom wafer; kuaj wafers yog siv rau kev sim thiab tshuaj xyuas cov xwm txheej ntawm cov cuab yeej tsim khoom nyob rau theem pib ntawm kev ua haujlwm los txhim kho nws txoj kev ruaj ntseg.
(一) Semiconductor silicon wafer: silicon wafer loj
Specifications thiab daim ntawv thov ntawm silicon wafers
Silicon wafers yog ib qho ntawm cov khoom siv tseem ceeb tshaj plaws hauv kev lag luam hluav taws xob, thiab feem ntau yog siv los tsim cov khoom sib xyaw ua ke, cov khoom siv hluav taws xob, cov diodes thiab lwm yam khoom siv. Integrated circuits yog cov khoom siv me me uas muaj cov khoom siv ntau yam xws li transistors, capacitors, resistors, thiab lwm yam, uas tuaj yeem siv rau hauv ntau yam khoom siv hluav taws xob xws li khoos phis tawj, khoom siv sib txuas lus, thiab khoom siv lom zem. Semiconductor silicon wafers yog ib qho ntawm cov khoom siv tseem ceeb rau kev tsim cov khoom sib xyaw ua ke.

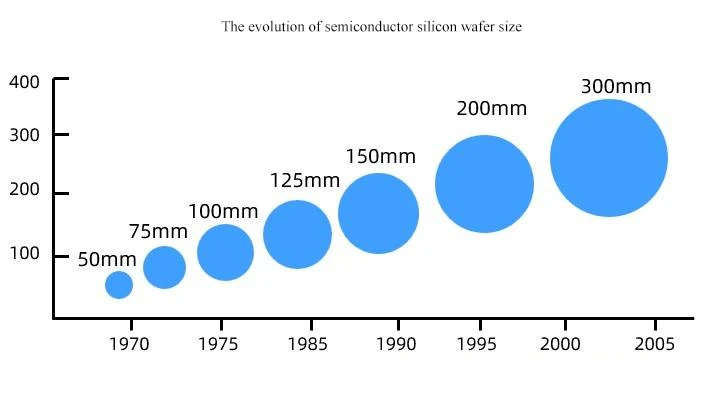

Semiconductor silicon wafer ntau thiab tsawg yog muab faib ua specifications raws li txoj kab uas hla, thiab muab faib ua 2 nti (50.8mm), 4 nti (100mm), 6 nti (150mm), 8 nti (200mm), thiab 12 nti (300mm). Sib txawv silicon wafer ntau thiab tsawg yog siv rau cov khoom sib txawv semiconductor.
Qhov zoo ntawm qhov loj-loj silicon wafers
Tus naj npawb ntawm cov chips tsim ntawm ib leeg silicon wafer nce:qhov loj dua lub wafer, qhov pov tseg tsawg dua ntawm cov npoo, uas txhim kho qhov kev siv ntawm silicon wafer thiab txo cov nqi. Noj 300mm silicon wafers ua piv txwv, nws thaj chaw muaj yog ob zaug ntawm 200mm silicon wafers nyob rau hauv tib txoj kev, uas tuaj yeem muab cov khoom tsim tau zoo txog li 2.5 npaug ntawm cov chips.
Kev siv tag nrho ntawm silicon wafers tau zoo dua:Kev tsim cov duab plaub silicon wafers ntawm puag ncig silicon wafers yuav ua rau qee qhov chaw ntawm ntug ntawm silicon wafer siv tsis tau, thiab qhov nce ntawm qhov loj ntawm silicon wafer txo qhov poob ntawm cov npoo tsis siv.
Cov cuab yeej muaj peev xwm txhim kho:Raws li cov txheej txheem yooj yim ntws: nyias zaj duab xis tso tawm → photolithography → etching → tu thiab lwm yam kev txhim kho hauv paus tseem tsis hloov, lub sijhawm nruab nrab ntawm cov nti yog luv, cov cuab yeej siv tau zoo dua, thiab lub tuam txhab muaj peev xwm nthuav dav.
(I) Semiconductor silicon wafer: SOI silicon wafer
(II) Photovoltaic silicon wafer: Cov qauv thiab tsis muaj
(II) Photovoltaic silicon wafer: Qhov taw qhia thiab txheej txheem kev npaj
(II) Photovoltaic silicon wafer: Txoj kev los txo cov nqi siv hluav taws xob silicon wafer
Core technologies ntawm Tuam Tshoj txoj kev lag luam silicon wafer
Ib leeg siv lead ua kev loj hlob technology

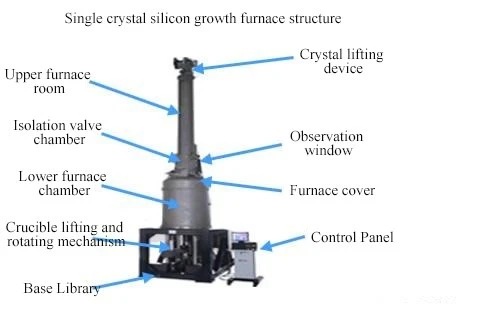

Ib leeg siv lead ua silicon kev loj hlob technology: yog ib txoj kev loj hlob siv lead ua siv kom tau cov khoom siv semiconductor. Ntawm lawv, ib leeg siv lead ua silicon belongs rau lub cubic siv lead ua thiab pob zeb diamond qauv, thiab yog cov khoom siv semiconductor nrog kev ua tau zoo heev. Tib siv lead ua silicon kev loj hlob technologies muaj xws li: Czochralski ib leeg siv lead ua txoj kev, magnetic teb Czochralski txoj kev, thiab nruam siv lead ua rub txoj kev.

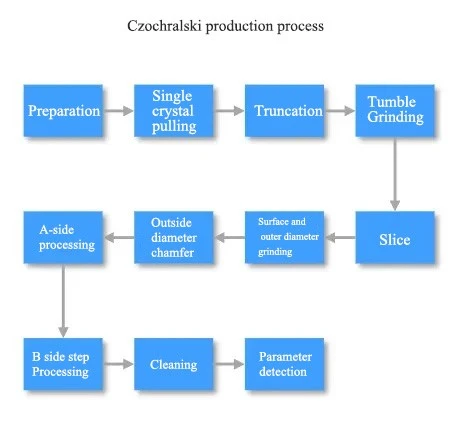

• Txoj Cai ntawm Czochralski txoj kev:Cov txheej txheem yog muab polysilicon rau hauv lub quartz crucible, kub nws thiab maj mam yaj nws, thiab txias nws mus rau hauv ib tug siv lead ua siv lead ua los ntawm cov noob siv lead ua axis thaum lub cua sov txheej txheem los ua ib tug siv lead ua silicon. Cov kauj ruam tshwj xeeb muaj xws li: thauj khoom, nqus tsev, ntim nrog cov roj tiv thaiv, cua sov, melting, noob, thiab lwm yam.

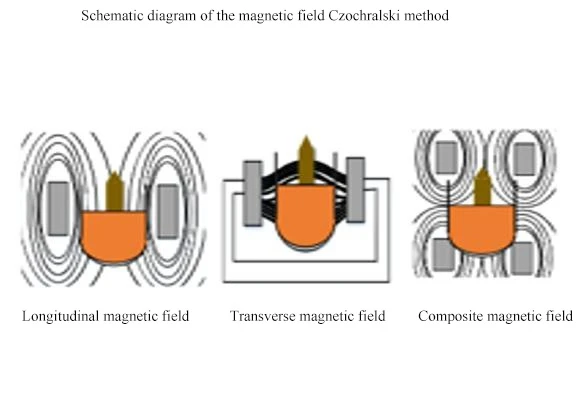

•Magnetic teb Czochralski txoj kev:Raws li cov txheej txheem kev loj hlob ntawm Czochralski, ib qho chaw sib nqus muaj zog yog siv rau cov yaj hauv lub crucible los txo cov thermal convection ntawm cov yaj. Txoj kev no yog siv los loj hlob Czochralski silicon ib qho crystals uas tsis tshua muaj oxygen concentration.
•Nruam siv lead ua rub txoj kev:Siv ib qho tshwj xeeb ntsug ib leeg siv lead ua rauv, lub pas nrig siv lead ua yog rub tsis tau ntxiv cov ntaub ntawv thiab melted tib lub sijhawm. Lub polysilicon kua theem nyob rau hauv lub crucible tseem nyob ruaj khov, uas yuav muab ib tug ntau ruaj khov thermal teb ib puag ncig. Cov ntaub ntawv raw yog txuas ntxiv ntxiv thaum lub sij hawm siv lead ua kev loj hlob los ua cov txheej txheem kev loj hlob siv lead ua ntau yam thiab ruaj khov.
Silicon wafer txiav tshuab
Lub hauv paus ntsiab lus ntawm silicon wafer txiav:Lub sab sauv ntawm silicon pas nrig yog tsau nyob rau hauv cov cuab yeej txiav, thiab silicon pas nrig txav maj mam downward thiab yog hauv av los ntawm high-ceev pob zeb diamond hlau kom ua tiav cov nyhuv txiav. Kev ua haujlwm ntawm silicon wafer txiav yog txiav cov silicon block rau hauv silicon wafers los ntawm kev txav txiav hlau txiav net. Tam sim no, silicon wafer txiav tshuab muaj qhov zoo ntawm kev txiav kev ua haujlwm siab, tus nqi qis thiab cov khoom siv tsawg. Silicon wafer txiav tshuab yog qhov tseem ceeb hauv ntau qhov chaw, thiab cov cuab yeej txiav tshuab tau ntev los ua lub ntsiab lus kub hauv kev tshawb fawb ntawm silicon wafer kev lag luam.
Lub voj voog sab hauv ntawm silicon wafer hais txog thaj chaw ncig ntawm qhov chaw ntawm silicon wafer, uas yog ntug ntawm silicon wafer. Kev ua haujlwm ntawm lub voj voog sab hauv ntawm silicon wafer yog txhawm rau tiv thaiv cov ntug ntawm lub wafer los ntawm kev tawg, tiv thaiv cov ntsiab lus ntawm thermal stress, thiab txo cov kab nrib pleb ntawm ntug ntawm silicon wafer, kom cov silicon wafer los yog roj teeb ntawm tes tawg. qhov kev txiav txim ntawm kev ntxhov siab sab nraud. Silicon wafer chamfering yog txhawm rau zom cov npoo tawg, cov ces kaum thiab cov kab nrib pleb ntawm ntug ntawm silicon wafer kom tau txais lub vojvoog du ntawm ntug ntawm silicon wafer. Cov kauj ruam no feem ntau ua ua ntej lossis tom qab sib tsoo. Muaj peb lub luag haujlwm tseem ceeb ntawm chamfering: tiv thaiv wafer ntug breakage, tiv thaiv thermal stress concentration, thiab txo qhov kev pheej hmoo ntawm silicon wafer los yog roj teeb cell breakage vim tawg ntawm ntug ntawm silicon wafer nyob rau hauv qhov kev txiav txim ntawm sab nraud kev nyuaj siab.
Cov txheej txheem ntau lawm ntawm Tuam Tshoj txoj kev lag luam silicon wafer
Kev tsim cov txheej txheem ntawm silicon wafer
Cov txheej txheem ntau lawm ntawm silicon wafer yog complex thiab muaj ntau yam txheej txheem. Cov kev sib txuas tseem ceeb suav nrog kev loj hlob ib leeg siv lead ua, slicing, polishing, epitaxial kev loj hlob thiab lwm yam txheej txheem. Kev loj hlob ib leeg siv lead ua yog kom tau txais cov khoom siv semiconductor uas ua tau raws li qhov yuav tsum tau ua ntawm kev tsim khoom, thiab cov khoom siv purified polycrystalline yuav tsum tau loj hlob mus rau hauv ib qho siv lead ua. Polishing yog tshem tawm micron-theem thiab nano-theem cov ntaub ntawv nyob rau saum npoo ntawm silicon wafer los ntawm kev xeb ntawm cov tshuaj daws teeb meem hauv cov kua polishing thiab tshem tawm cov khoom sib tsoo hauv cov kua polishing. Epitaxial kev loj hlob yog kom loj hlob ib leeg siv lead ua txheej nrog tib siv lead ua orientation raws li lub substrate ntawm ib tug siv lead ua substrate, ncua ib seem sab nraud ntawm lub qub siv lead ua. Cov txheej txheem siv lead ua tshiab tshiab tuaj yeem sib txawv ntawm cov substrate nyob rau hauv cov nqe lus ntawm conductivity hom, resistivity, thiab lwm yam, thiab ntau txheej ib tug crystals ntawm txawv thicknesses thiab cov yuav tsum tau kuj yuav zus tau tej cov yooj yim ntawm cov cuab yeej tsim thiab kev ua tau zoo. lub cuab yeej.
Silicon wafer manufacturing txhawb cov txheej txheem khoom
Silicon wafer manufacturing txheej txheem muaj xws li ib tug siv lead ua kev loj hlob, rounding thiab txiav, slicing, chamfering thiab sib tsoo, polishing, tu thiab kuaj, uas sib xws rau ib tug siv lead ua silicon loj hlob rauv, dov thiab txiav tshuab, slicer, chamfering tshuab, CMP polisher, tu. thiab cov khoom siv kuaj. Qhov tseem ceeb tshaj plaws ntawm cov no yog txiav thiab polishing. Txiav yog txiav cov silicon wafer los ntawm silicon ingot, thaum polishing yog ua cov txheej txheem ntawm silicon wafer rau cov txheej txheem tom ntej.

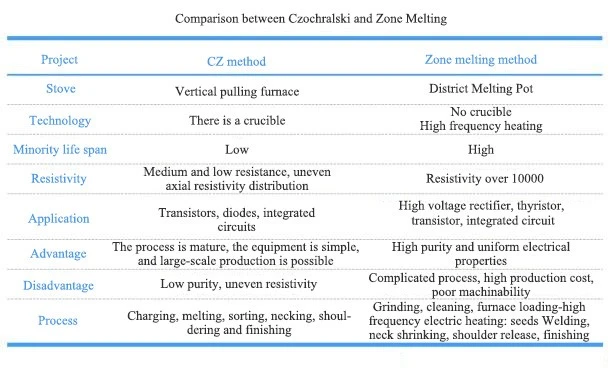

Silicon wafer ib leeg siv lead ua kev loj hlob: Czochralski txoj kev thiab cheeb tsam melting txoj kev
Cov txheej txheem tseem ceeb rau silicon wafer ib leeg siv lead ua kev loj hlob yog Czochralski txoj kev thiab cheeb tsam melting txoj kev. Txoj kev Czochralski Muab cov khoom siv lim dej tso rau hauv lub crucible, thiab cov crucible yog muab tso rau hauv qhov chaw sov kom tsim nyog. Thaum cov txheej txheem cua sov, cov ntaub ntawv nyoos maj mam yaj hauv lub crucible. Tom qab ntawd, cov noob ua ntej muab tso rau hauv lub pob zeb yog rub thiab tig ntawm ib qho kev ceev kom loj hlob ib qho siv lead ua uas ua tau raws li cov xwm txheej. Zone melting method yog hais txog ib txoj kev uas siv cov txheej txheem melting-solidification kom tshem tawm impurities raws li lub hauv paus ntsiab lus ntawm kua-khoom sib npaug. Zone melting tuaj yeem tshem tawm impurities los ntawm cov khoom lossis cov khoom sib xyaw kom ua tiav lub hom phiaj ntawm kev ua kom huv. Ib leeg siv lead ua silicon uas tsim los ntawm Czochralski txoj kev muaj cov ntsiab lus oxygen siab, siab txhua yam muaj zog, thiab loj loj, thiab feem ntau yog siv los tsim cov hluav taws xob qis qis, thaum ib leeg siv lead ua silicon tsim los ntawm cheeb tsam melting txoj kev muaj siab purity thiab Cov khoom siv hluav taws xob tsis sib xws, thiab feem ntau yog siv los tsim cov khoom siv hluav taws xob siab.
Tuam Tshoj silicon wafer kev lag luam saw
Upstream thiab downstream tsim nyob rau hauv kev sib koom tes, thiab kev lag luam kev xav tau txuas ntxiv mus ntxiv
Cov khoom siv semiconductor yog ib qho ntawm cov khoom siv tseem ceeb ntawm silicon wafers, nrog rau kev sib xyaw ua ke, cov khoom siv optoelectronic, sensors thiab lwm yam. Lub luag haujlwm tseem ceeb ntawm silicon wafers hauv cov khoom siv semiconductor yog qhov tseem ceeb, yog li qhov ua tau zoo thiab kev ua haujlwm ntawm silicon wafers siab heev. Sab saum toj ntawm silicon wafer kev lag luam saw feem ntau suav nrog silicon wafer raw cov ntaub ntawv thiab cov khoom siv silicon wafer. Qhov nruab nrab ntawm silicon wafers feem ntau suav nrog cov txheej txheem silicon wafer ntws thiab kev faib tawm ntawm silicon wafers. Silicon wafer manufacturing yuav tsum tau siv cov khoom siv high-precision thiab thev naus laus zis, suav nrog kev loj hlob ib leeg, kev sib tw thiab kev txiav, txiav, polishing thiab lwm yam txuas. Lub downstream ntawm silicon wafers feem ntau suav nrog cov ntawv thov kev lag luam, nrog rau kev sib txuas lus thev naus laus zis, cov neeg siv khoom siv hluav taws xob tsheb, kev siv huab cua, thiab lwm yam. Cov dej ntws thiab cov dej ntws ntawm silicon wafers tsim hauv kev sib koom ua ke kom tau raws li cov kev xav tau ntawm cov neeg siv khoom qis. Tsis tas li ntawd, silicon wafers kuj tau siv dav hauv cov hnub ci vaj huam sib luag, LED teeb pom kev zoo thiab lwm qhov chaw, thiab kev lag luam xav tau hauv cov teb no kuj tseem loj hlob. Txhawm rau ua kom tau raws li kev xav tau ntawm kev lag luam, cov tuam txhab lag luam silicon wafer yuav tsum tau ua kom zoo dua qub thiab ua haujlwm ntawm silicon wafers, thaum ntxiv dag zog rau kev tshawb fawb thiab kev tsim kho thiab kev tsim kho tshiab los txhawb kev txhim kho ntawm silicon wafer kev lag luam.
Tuam Tshoj silicon wafer kev lag luam kev lag luam qauv
Silicon cov ntaub ntawv tu thiab txiav cov kua dej rov ua dua qauv
Silicon cov ntaub ntawv tu cov kua dej yog cov kua siv los ntxuav qhov chaw ntawm silicon wafers, uas tuaj yeem tshem tawm impurities thiab oxides ntawm qhov chaw rau kev ua haujlwm tom ntej. Silicon cov ntaub ntawv txiav kua yog cov kua siv los txiav cov silicon wafers, uas tuaj yeem ua rau silicon wafers yooj yim dua txiav. Cov kev pab cuam tu cov khoom siv silicone muaj xws li kev tu tus kheej, kev tu tus kheej thib peb (kev tu sab nraud ntawm lub hoobkas), thiab kev tu tus neeg thib peb (ntxuav hauv lub hoobkas). Raws li qhov ntsuas ntawm cov khoom siv silicon kev lag luam txuas ntxiv nthuav dav, hom kev tu uas twb muaj lawm tuaj yeem ua tsis tau raws li cov neeg siv khoom xav tau kev huv. Yog li ntawd, lub Hoobkas muab cov kev pabcuam sib thooj los xyuas kom meej cov kev pabcuam zoo thiab ua kom muaj kev sib faib ua haujlwm ntawm kev ua haujlwm. Kev txiav cov kua dej muaj xws li tso tawm ncaj qha, kho tus kheej, thiab kev pabcuam hauv lub hoobkas. Kev txiav cov kua dej yog qhov tsim nyog rau kev txo qis cov kua dej pov tseg thiab siv cov tshuaj, txuag cov nqi yuav khoom ntawm kev txiav cov kua thiab ntxuav tus neeg saib xyuas, thiab cov nqi dej phwj tuaj, txo cov nqi tsim khoom ntawm cov neeg siv khoom, thiab txhim kho kev lag luam kev sib tw.
Kev sib piv ntawm Silicon Material Cleaning Service Models
| Silicon khoom tu hom | Qauv Taw Qhia | Cov neeg muas zaub | Qhov zoo | Qhov tsis zoo |
| Tus kheej tu hom | Lub tuam txhab tsim khoom ntawm silicon cov khoom lag luam yog lub luag haujlwm rau cov khoom siv silicon tu los ntawm nws tus kheej, thiab ua tiav cov khoom siv silicon tu lub lag luam los ntawm kev tsim nws tus kheej cov khoom siv silicon tu Rhiav. | Haum rau cov lag luam downstream nrog kev txhim kho cov tswv yim sib xyaw | Cov txheej txheem ntau lawm thiab cov khoom siv silicon tu txheej txheem yog tag nrho nyob rau hauv kev tswj hwm ntawm tib lub tuam txhab, uas pab txhawb kev sib koom ua ke thiab kev teem sijhawm ntawm cov khoom siv silicon ntau lawm thiab tu. | Kev tswj xyuas tau nce ntxiv, thiab qhov tsis muaj kev paub dhau los hauv kev ua haujlwm ntawm silicon cov ntaub ntawv tu tau ua rau poob qis hauv kev tswj hwm kev ua haujlwm. |
| Kev ntxuav los ntawm tus neeg thib peb (kev tu sab nraum lub Hoobkas) |
Txais kev pabcuam outsourcing los koom tes nrog cov tuam txhab ua haujlwm sab nraud silicon cov khoom siv tu, thiab lub tuam txhab tu lub tuam txhab tsis tu ncua thauj cov ntaub ntawv silicon mus rau nws lub rhiav sab nraum lub Hoobkas los ntxuav. | Haum rau cov lag luam downstream ntawm qhov nruab nrab loj | Feem ntau ntawm cov tuam txhab uas koom nrog hom kev lag luam no yog cov lag luam me thiab nruab nrab, thiab cov tuam txhab qis qis tau hais ntau dua. | Cov khoom siv tu thiab kev ua haujlwm huv tsis tuaj yeem ua tau raws li qhov yuav tsum tau ua, thiab kev tu cov khoom siv silicon tsis tuaj yeem lav; kev hloov pauv txhua hnub thiab kev thauj mus los ntawm cov khoom siv silicon yog siab |
| Kev ntxuav los ntawm tus neeg thib peb (kev ntxuav hauv lub hoobkas) |
Qhov txawv yog tias kev lag luam monocrystalline silicon cov ntaub ntawv yuav xaiv koom tes nrog silicon cov ntaub ntawv tu cov tuam txhab uas muaj kev koom tes hauv kev lag luam thiab kev lag luam kev lag luam, thiab tso cai rau lawv tsim cov chaw ua haujlwm nyob ze hauv cheeb tsam ntawm lub Hoobkas los ntxuav cov ntaub ntawv silicon. | Haum rau cov lag luam loj loj nrog cov tswv yim txhim kho tshwj xeeb | Nws tsis tsuas yog daws qhov teeb meem ntawm kev txo qis kev tswj hwm kev ua haujlwm los ntawm kev hla ciam teb ntawm kev lag luam ntawm tus kheej, tab sis kuj daws qhov teeb meem uas kev tu kom zoo thiab kev nyab xeeb ntawm tus qauv thib ob tsis tuaj yeem lav tau. | Nws yog ib qho tsim nyog los tsim kom muaj kev sib koom tes sib sib zog nqus nrog cov neeg muab kev pabcuam |
Txiav kua hom kev kho mob
| Txiav kua hom kev kho mob | Qauv qhia | Cov neeg muas zaub | Qhov zoo | Qhov tsis zoo |
| Kev tso tawm ncaj qha | Lub tuam tsev tsim khoom ntawm cov khoom lag luam silicon khaws cov khib nyiab txiav thiab tso tawm tom qab kev kho mob hauv nruab nrab | Haum rau cov lag luam me lossis cov lag luam loj loj nrog kev nqis peev loj hauv cov cuab yeej tiv thaiv ib puag ncig | Omitting ib qhov txuas hauv kev tsim cov monocrystalline silicon wafers, txhim kho kev tswj hwm kev ua haujlwm | Yuav tsum muaj kev nqis peev loj hauv kev tiv thaiv ib puag ncig; muaj qee yam cuam tshuam rau chav tsev nqi ntawm monocrystalline silicon wafers |
| Kev kho tus kheej | Ua kom tiav cov khoom siv rov ua dua tshiab thiab kho cov dej txiav los ntawm kev tsim cov khoom siv rov ua dua tshiab thiab kev kho mob | Haum rau cov lag luam downstream nrog kev txhim kho cov tswv yim sib xyaw | Kev sib txuas ntau lawm thiab kev txiav cov kua dej sib txuas yog tag nrho nyob rau hauv kev tswj hwm ntawm tib lub tuam txhab, uas yooj yim rau kev sib koom ua ke kev npaj thiab teem caij. | Ua kom muaj kev tswj xyuas, ua ke nrog qhov tsis muaj kev paub dhau los ntawm kev txiav cov kua dej, uas ua rau txo qis hauv kev tswj hwm kev ua haujlwm. |
| Kev pabcuam hauv lub hoobkas | Koom tes nrog cov lag luam nrog kev lag luam nplua nuj, tso cai rau lawv los tsim cov kev cob qhia hauv cheeb tsam ntawm lub Hoobkas thiab txuas lawv nrog cov kab ntau lawm kom ua tiav cov khoom siv rov ua dua tshiab thiab kev kho mob ntawm silicon wafer txiav kua | Haum rau cov lag luam loj loj nrog cov tswv yim txhim kho tshwj xeeb | Kev daws qhov teeb meem ntawm kev txo qis kev tswj hwm los ntawm lub tuam txhab tus kheej ua lag luam hla ciam teb, txuag nqi rau cov neeg siv khoom qis. | Yuav tsum tsim kom muaj kev sib koom tes sib sib zog nqus nrog cov neeg muab kev pabcuam |
Kev hloov pauv ntawm cov nqi silicon wafer cuam tshuam cov nqi tsim khoom
Txij li thaum silicon wafers tau siv dav hauv kev lag luam xws li kev tsim khoom siv hluav taws xob thiab kev lag luam hnub ci, qhov nce thiab nqis ntawm lub voj voog kev lag luam yuav muaj kev cuam tshuam rau tus nqi, thiab kev hloov pauv ntawm cov khoom siv silicon tus nqi yuav cuam tshuam ncaj qha rau cov nqi tsim khoom ntawm silicon wafers. Raws li PVInfoLink cov ntaub ntawv, nyob rau hauv lub ntiaj teb no silicon wafer tus nqi sib txawv, tus nqi ntawm monocrystalline silicon wafers 210 hli, monocrystalline silicon wafers 182 hli, thiab monocrystalline silicon wafers 166 hli yog cuam tshuam los ntawm kev lag luam xav tau thiab fluctuate nyob rau hauv ib tug tej yam ntau yam. Pib txij lub Rau Hli 2021, cov nqi silicon wafer tau nkag mus rau qhov nce siab thiab mus txog qhov siab tshaj plaws nyob rau lub Yim Hli 2022, nrog kev loj hlob muaj zog. Nrog rau kev nce qib ntawm cov thev naus laus zis tas li, cov txheej txheem tsim khoom ntawm silicon wafers tau ua kom zoo dua thiab cov nqi tau txuas ntxiv mus. Tsis tas li ntawd, txij li ib nrab xyoo 2022, qhov kev cuam tshuam los ntawm kev tsis sib haum xeeb ntawm cov khoom siv thiab kev xav tau hauv kev lag luam semiconductor thoob ntiaj teb tau ua rau ntiaj teb cov nqi silicon wafer hloov pauv thiab poob rau xyoo dhau los.
Ntiaj teb no silicon wafer kev lag luam lag luam loj
Silicon wafer xa khoom nyob ruaj khov, kev lag luam loj hlob sai
Silicon-based semiconductor cov ntaub ntawv tam sim no yog cov khoom siv semiconductor nrog cov zis ntau tshaj plaws thiab siv dav tshaj plaws. Daim ntawv thov teb ntawm semiconductors txuas ntxiv nthuav dav nrog kev nce qib ntawm kev tshawb fawb thiab thev naus laus zis. Kev lag luam tawm tshiab xws li Is Taws Nem ntawm Yam, kev txawj ntse, thiab kev suav huab tau nthuav dav, coj txoj hauv kev loj hlob tshiab rau kev lag luam semiconductor silicon wafer. Txij li xyoo 2018, lub ntiaj teb semiconductor silicon wafer xa khoom tau qhia txog kev nce siab thaum muaj kev hloov pauv. Raws li SEMI cov ntaub ntawv, kev xa khoom semiconductor yuav nkag mus rau lub voj voog loj hlob tshiab pib xyoo 2021. Tau txais txiaj ntsig los ntawm cov ntawv thov tshiab thiab cov npe nrov ntawm 12-inch silicon wafers, kev xa khoom thoob ntiaj teb silicon wafer yuav tsum tshaj 15 billion square inches yav tom ntej. . Raws li SEMI cov ntaub ntawv, lub ntiaj teb no semiconductor silicon wafer kev lag luam loj tseem nyob ntawm US $ 11 billion los ntawm 2018 txog 2020. Pib xyoo 2021, nrog rau kev sib txawv ntawm kev tsim cov khoom siv davhlau ya nyob twg, kev lag luam kuj tau nkag mus rau lub sijhawm ntawm kev loj hlob sai. Nws cia siab tias thaum kawg ntawm 2023, lub ntiaj teb semiconductor silicon wafer kev lag luam loj yuav tsum tshaj US $ 14 billion.
Tuam Tshoj silicon wafer kev lag luam lag luam loj
Silicon wafer ntau lawm txuas ntxiv mus, thiab kev lag luam hauv qab yog loj heev
Txij li thaum xyoo 2018, kuv lub teb chaws cov khoom siv silicon wafer feem ntau qhia txog kev loj hlob txhua xyoo. Raws li CPIA cov ntaub ntawv, kuv lub teb chaws cov khoom siv silicon wafer tau nkag mus rau lub sijhawm siab tshaj plaws txij li xyoo 2021, nrog rau kev loj hlob sai. Nrog rau kev nthuav dav ntawm cov tuam txhab ua lag luam, kev siv thev naus laus zis tsis tu ncua thiab kev loj hlob ntawm cov kev xav tau qis qis, cov khoom siv silicon wafer yuav tsum tshaj 400GW yav tom ntej. Nyob rau hauv xyoo tas los no, kuv lub teb chaws txoj kev lag luam silicon wafer tau tsim sai heev, thiab kev loj hlob ntawm cov lag luam hauv tsev loj tau tshaj qhov nruab nrab ntawm kev loj hlob thoob ntiaj teb. Raws li SEMI cov ntaub ntawv, kuv lub teb chaws lub semiconductor silicon wafer kev lag luam loj tshaj 10 billion yuan hauv kev lag luam loj los ntawm 2021 txog 2022, thiab qhov kev loj hlob tau txuas ntxiv mus. Nws xav tias yuav dhau 15 billion yuan hauv kev lag luam loj nyob rau yav tom ntej, thiab muaj chaw dav rau kev lag luam loj hlob.
